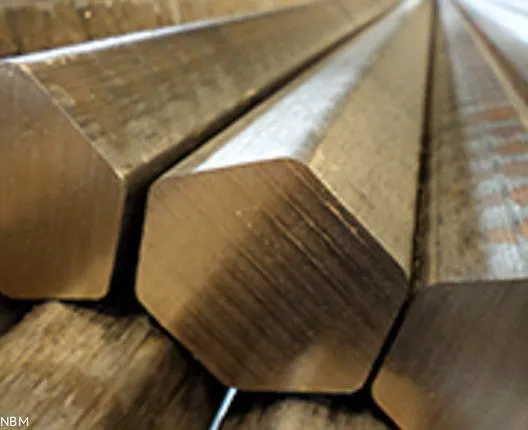

Typical Uses for C95800 Alpha Nickel Aluminum Bronze:
C95800 offers superior salt water corrosion resistance. It also is resistant to cavitation and erosion. Along with the advantage of pressure tightness, this high strength alloy is excellent for welding and is available in many forms at a lower cost to you.
Military/AMS: MIL-B-24480 Other: ABS - 4, cc333G
Specifications
| End Product | Specification |
| Centrifugal | ASTM B271, SAE J462, J461 |
| Continuous | ASTM B505, SAE J461, J462 |
| Ingot | ASTM B30 |
| Precision | ASTM B806 |
| Sand | ASTM B148, B763, MILITARY MIL-B-24480, SAE J461, J462 |
Common Applications:
Piping for Vertical Pump Columns
Firefighting and Fire Suppression Systems
Seawater Lift Pumps
Piping Layout, Flanges and Fittings
Discharge Elbows
Cooling Loops for Power Plants
Bronze Valve Bodies
Piping Systems
Desalination Equipment
Tube Sheets
Circulating Pumps and Pump Shafts
Fasteners, Hardware for Cooling towers
| Al | Cu | Fe | Pb | Mn | Ni | Si | |
| Min/Max | 8.5-9.5 | 79.0 min | 3.5-4.5 | 0.03 | .8-1.5 | 4.0-5.0 | 0.1 |
| Nominals | 9.0000 | 81.0000 | 4.0000 | - | 1.0000 | 4.5000 | - |
| Product Type | Temper Type |
| Centrifugal | ASTM B271, SAE J462, J461 |
| Continuous | ASTM B505, SAE J461, J462 |
| Ingot | ASTM B30 |
| Precision | ASTM B806 |
| Sand | ASTM B148, B763, MILITARY MIL-B-24480, SAE J461, J462 |
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.5% EUL | Elong. | RH B | RH C | RH F | RH 30T | VH 500 | BH 500 | BH 3000 | Shear Strgth | Fatigue Strgth | Izod Impact Strgth |
| - | in. | % | - | F | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| - | mm. | - | - | C | MPa | MPa | - | - | - | - | - | - | - | - | MPa | MPa | J |
| M02 | 68 | 85 | 35 | - | - | - | - | - | - | - | - | - | - | ||||
| M02 | 0 | SMIN | 20 | 585 | 240 | 15 | - | - | - | - | - | - | - | - | - | 0 | |
| As Continous Cast | |||||||||||||||||
| M07 | 68 | 85 | 35 | - | - | - | - | - | - | - | - | - | - | ||||
| M07 | 0 | SMIN | 20 | 586 | 241 | 18 | - | - | - | - | - | - | - | - | - | 0 | |
| As Permanent Mold Cast | |||||||||||||||||
| M05 | 68 | 90 | 40 | - | - | - | - | - | - | - | - | - | - | ||||
| M05 | 0 | SMIN | 20 | 620 | 275 | 15 | - | - | - | - | - | - | - | - | - | 0 | |
| M05 | 68 | 96 | 52 | - | - | - | - | - | - | - | - | - | - | ||||
| M05 | 0 | TYP | 20 | 660 | 360 | 17 | 88 | - | - | - | - | - | - | - | - | 0 | |
| As Sand Cast | |||||||||||||||||
| M01 | 68 | 85 | 35 | - | - | - | - | - | - | - | - | - | - | ||||
| M01 | 0 | SMIN | 20 | 585 | 240 | 15 | - | - | - | - | - | - | - | - | - | 0 | |
| M01 | 68 | 95 | 38 | - | - | - | - | - | - | - | 159 | 58 | 31 | 20 | |||
| M01 | 0 | TYP | 20 | 655 | 262 | 25 | - | - | - | - | - | - | 159 | 400 | 214 | 27 |
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.0 . 10-6 per oF (68-572 F) | 16.2 . 10-6 per oC (20-300 C) |
| Density | 0.276 lb/in3 at 68 F | 7.64 gm/cm3 @ 20 C |
| Electrical Conductivity | 7 %IACS @ 68 F | 0.041 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 146.7 ohms-cmil/ft @ 68 F | 34.39 microhm-cm @ 20 C |
| Information not available on website | ||
| Magnetic Permeability | 1.05 | 1.05 |
| Melting Point - Liquidus | 1940 F | 1060 C |
| Melting Point - Solidus | 1910 F | 1043 C |
| Modulas of Elasticity in Tension | 16500 ksi | 114000 MPa |
| Poisson's Ratio | 0.32 | 0.32 |
| Specific Gravity | 7.64 | 7.64 |
| Specific Heat Capacity | 0.105 Btu/lb/oF at 68 F | 440.0 J/kg . oK at 293 K |
| Thermal Conductivity | 20.8 Btu . ft/(hr . ft2 . oF)at 68F | 36.0 W/m . oK at 20 C |
| Joining Technique | Suitability |
| Brazing | Fair |
| Coated Metal Arc Welding | Good |
| Gas Shielded Arc Welding | Good |
| Machinability Rating | 50 |
| Oxyacetylene Welding | Not Recommended |
| Soldering | Good |
